X-ray Shielding Materials

While we encourage you to utilise our expertise to provide a total radiation shielding package, we do recognise that in some circumstances the 'supply only' of these materials is more appropriate.

These materials are used within our own specialist products to provide effective shielding from:

  • X-ray, Gamma & Neutron emissions
  • Radio Frequency and Magnetic interference
  • Creating a safe environment for patients, staff and members of the public.

We offer a fast and efficient service at competitive prices. Many items are held in stock for fast delivery times.

Back to Top

Sheet Lead

Sheet Lead is available in a number of standard thicknesses from our extensive stocks. Non-standard thicknesses including lead plates are available to special order.

Milled to BS.1178 1969, the standard BS Codes and their respective weights are listed in the table on the right.

British Standard Lead Thickness
BS CodeThicknessWeight
kg per m2
Code 31.32mm15.00
Code 41.80mm20.40
Code 52.24mm25.40
Code 62.65mm30.10
Code 73.15mm35.70
Code 83.55mm40.30
Back to Top

Lead Bricks

Where protection greater than 10mm is required, the use of interlocking lead chevron bricks is preferred.

Typical lead brick thicknesses are 10mm, 12mm, 15mm, 20mm and 25mm. For exceptionally heavy installations, laminations of bricks are used with the joints staggered.

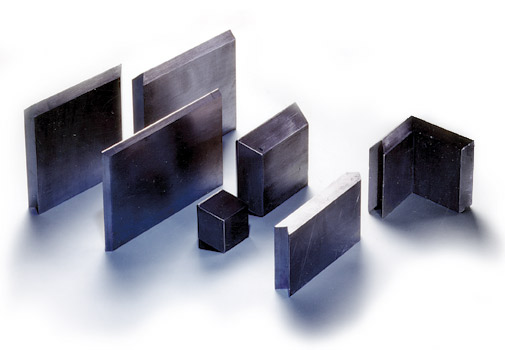

Lead bricks
Lead Bricks
Back to Top

X-ray Glass

We are a leading distributor for Corning® Med-X® and Med-Gamma® glass for all types of radiation shielding involving X-ray and Gamma based PET radiation sources.

The production of Corning glass is strictly controlled and is manufactured in accordance with the Quality Standard ISO 9001, the Environmental Standard ISO 14001, and the Health & safety Standard OHSAS 18001.

Both types of lead glass can also be provided in sheet sizes up to 2800mm x 1400mm for wide fields of vision. However, please take into consideration the overall weights and handling implications of larger sheet sizes.

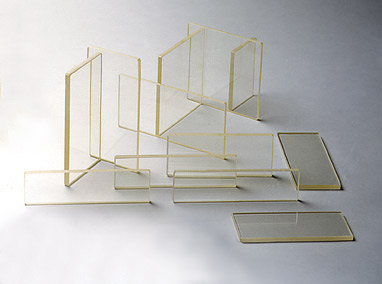

Lead glass
Lead Glass

See Also

Corning® Med-X®

Corning® Med-X® Glass provides high quality, transparent and safe protective shielding against X-ray radiation for medical, technical and research applications.

Its high lead and barium content and wide range of thickness, provides optimum shielding from equipment operating in the 80 to 300kV range.

We carry large bulk stocks of X-ray shielded glass in sheet sizes 2000mm x 1000mm and four thicknesses which give lead equivalents from 1.5mmPb to 3.2mmPb @ 150kV. With our specially designed wall saw we are able to offer a fast ‘cut to order’ service.

Suitable for:

  • Viewing windows for X-ray, angiography, and CT scans
  • Screens for medical diagnostics
  • Protection windows in laboratories
  • Airport security X-ray screens.
Corning® Med-X®
Physical ThicknessLead Equivalent @ 511keVWeight kg per m2
5/6.5mm1.5mmPb31.2kg
7/8.5mm2.1mmPb40.8kg
8.5/10mm2.6mmPb48kg
11/13mm3.2mmPb62.4kg

Corning® Med-Gamma®

Med-Gamma® is also available to special order, providing high quality, transparent and protective shielding from Gamma based radiation at various KeV levels.

It is manufactured in physical thicknesses from 7.0/8.5mm to 18/20mm providing respective lead equivalents 2.3mm to 5.9mm @ 511keV, although increased thicknesses (up to 45/53 mm, offering 15mm lead equivalent @ 511keV) can be achieved through lamination process using a 1.5mm interlayer.

Suitable for:

  • Occupational protection from PET gamma radiation used in scanning techniques for diagnostics and treatment
  • Cyclotron maintenance
Corning® Med-Gamma®
Physical ThicknessLead Equivalent @ 511keVWeight kg per m2
7/8.5mm2.3mmPb40.8kg
8.5/10mm2.8mmPb48kg
14/16mm4.6mmPb76.8kg
28/32mm9.3mmPb153.6kg
Back to Top

Lead Acrylic

Premac® lead acrylic is a lead loaded acrylic copolymer resin with particular shielding properties and can be used in the production of glove boxes, windows, mammography screens, laboratory ware, cabinets and bench shields.

The material is transparent with a very light brown tint, exhibiting virtually all the normal chemical and physical properties of conventional acrylic. The lead content is 30% wt/wt and is chemically introduced into the acrylic resin as an organolead salt.

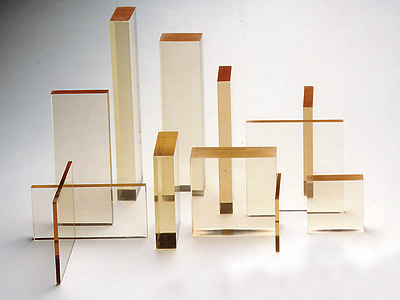

Premac Lead Acrylic
Premac® Lead Acrylic

Thickness and Lead Equivalence

It is available in a range of seven standard thicknesses (H8 to H70) and lead equivalents. We carry large stocks of the most popular sizes for fast delivery at competitive prices.

TypePhysical ThicknessLead Equivalent[1]Weight
kg per m2
Maximum Dimensions (mm)
H88.5mm ±0.7mm0.3mm14kg1830 x 2440
H1212mm ±1mm0.5mm19kg1830 x 2440
H1818mm ±1mm0.8mm29kg1830 x 2440
H2222mm ±2mm1.1mm35kg1830 x 2440
H3535mm ±2mm1.5mm56kg1830 x 2440
H4646mm ±3mm2.2mm74kg1220 x 2440
H7070mm ±3mm3.0mm112kg1220 x 2440

Physical Properties

Premac® can be shaped and drilled to suit exact requirements and has a polished finish. We supply it with a special masking paper for protection during storage and handling.

Supplied in seven thicknesses and in sizes cut to special order, the material may be laminated to increase the shielding capabilities or bonded between sheets of plain acrylic.

Physical Properties
Density 1.6 g/cm3
Tensile Strength 490 kg/cm2
Elongation 18%
Izod Impact Strength (notched) 3.0 kg/cm2
Refractive index nd1.54
Reflective index p0.0454

Radiation Resistance

Premac® exhibits good radiation resistance. When exposed to a 1x105 total dose of Cobalt 60 gamma radiation little or no deterioration of its physical properties was observed as shown in the table below. In the same test the rate of discolouration forPremac® was also much less than for either lead or plate glass.

Dose (150 r/hr)1x1045x1041x105
Retained flexural Strength (%)100105105
Retained Izod Impact Strength (%)989793

Chemical Resistance

Premac® has similar chemical resistance to conventional acrylic. This chart illustrates the chemical resistance, as judged by visual observation, of small samples immersed at 20°C for 1 week in the chemicals listed.

Unsatisfactory
Decomposed or dissolved
Some Attack
Slight crazing or swelling
Satisfactory
No effect
Acetic Acid (99%)
Sulphuric Acid (98%)
Acetone
Chloroform
Meta-Cresol
Diethyl Ether
Dimethyl Formamide
Ethyl Acetate
Ethyl Alcohol (99.5%)
Ethyl Alcohol (50%)
Hydrochloric Acid (36%)
Methyl Alcohol
Methylene Dichloride
Methyl Ethyl Ketone
Nitric Acid (60%)
Nitric Acid (12%)
Pyridine
Sodium Hydroxide (35%)
Tetraline
Tetrahydrofurane
Toluene
Carbon Tetrachloride
Dibutyl Phthalate
Dioctyl Phthalate
n-Hexane
Isopropyl Alcohol
Sodium Hydroxide (10%)
Water
Back to Top

Concrete Blocks

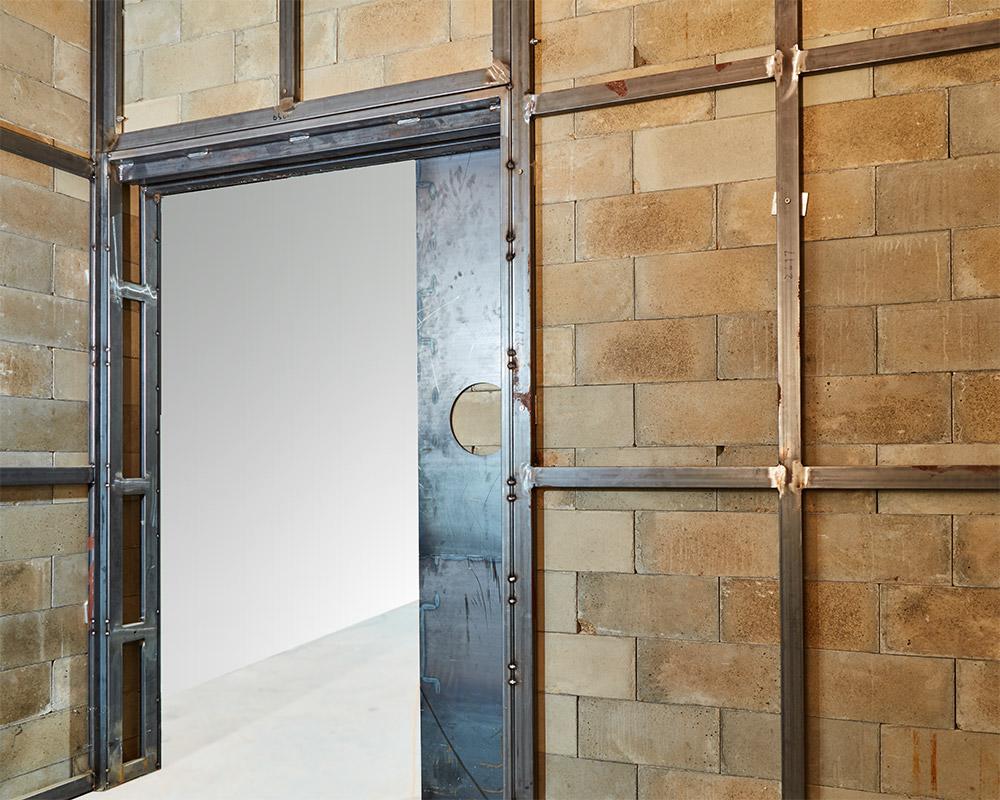

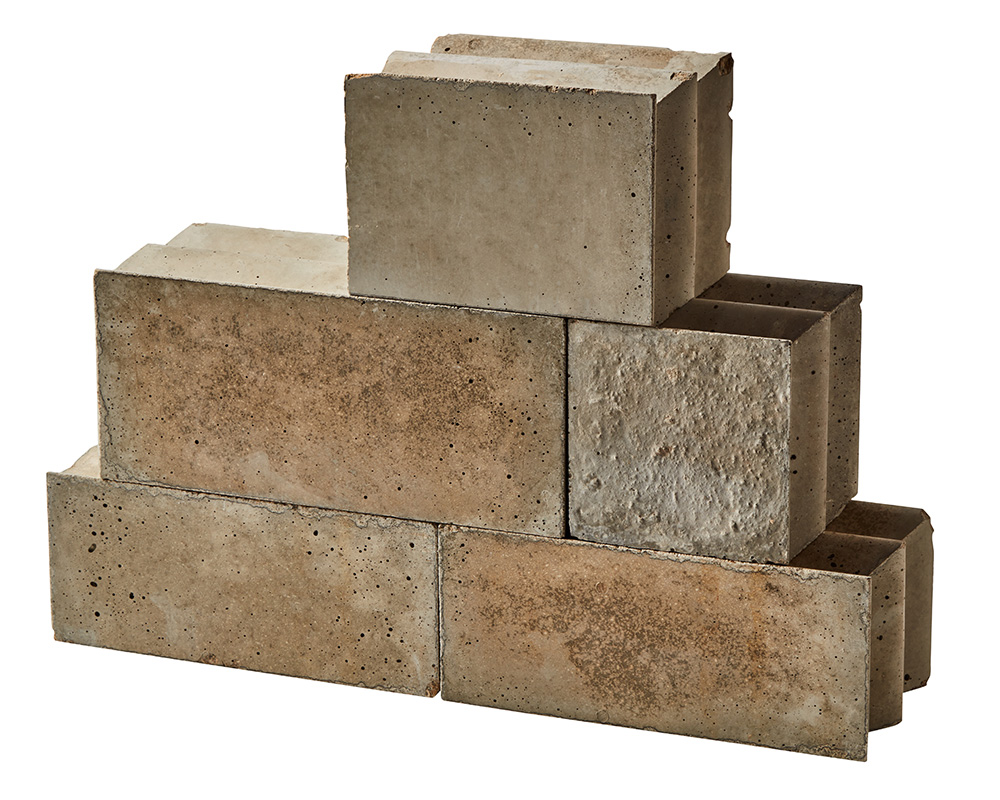

Our new QuantaShield™ Concrete Blocks are a versatile radiation shielding solution against X-rays, gamma rays, protons, neutrons and magnetic fringe fields.

The interlocking blocks are designed to minimise radiation leakage. They are easy to install, being sized for easy manual handling and stacking. They don't require any bonding agents reducing the need for wet trades on site.

They are manufactured in the UK from concrete with naturally recycled constituents and are available in densities between 2g/cc and 4g/cc. At higher densities they offer significant floor space saving compared with standard density concrete blocks on the market.

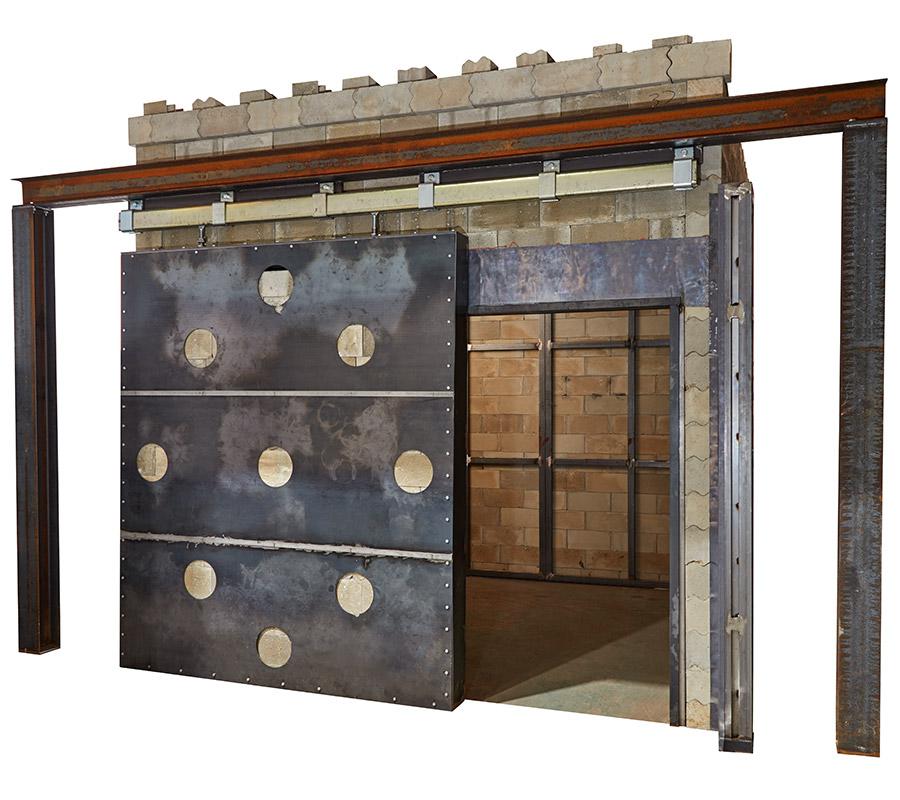

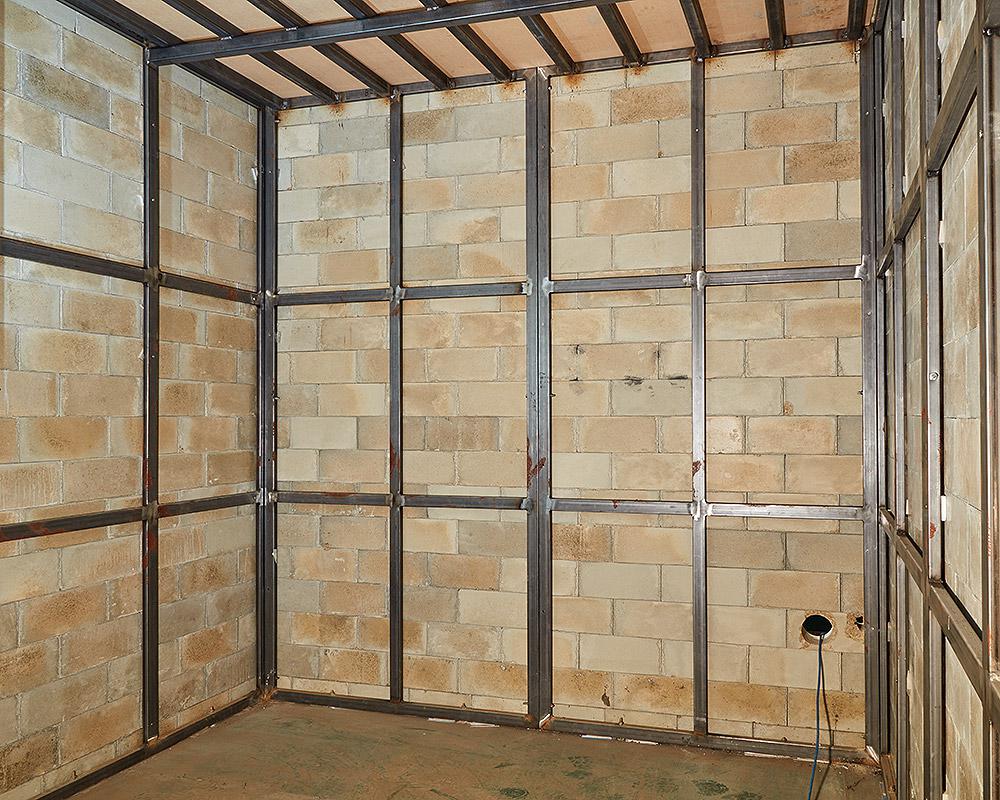

Customers are invited to discuss their project requirements and review the test room constructed from QuantaShield™ blocks at Wardray’s factory in Brighouse, West Yorkshire. Please contact us for further information.

Please contact us for further information or to discuss your structural radiation shielding requirements.
